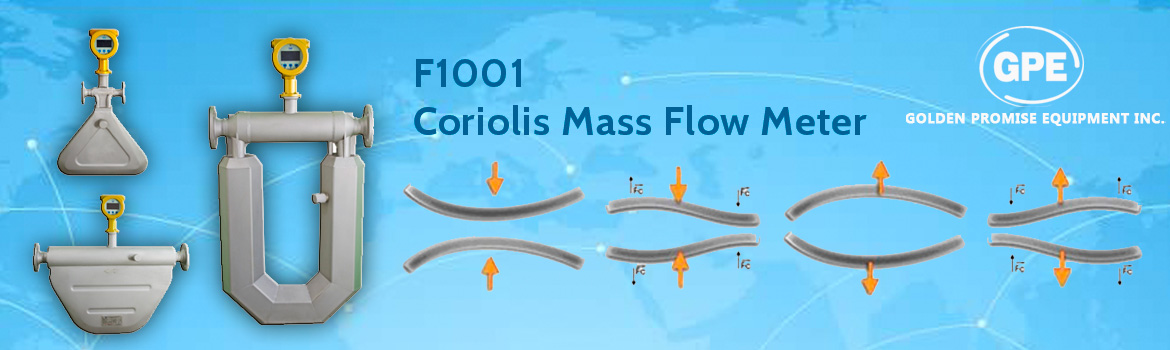

GPE | F1001 Coriolis Mass Flow Meter


F1001 Coriolis Mass Flow Meter


GPE Model F1001 series Coriolis Mass Flowmeters are a major advance in mass flow measurement. Coriolis Mass Flowmeters provides outstanding accuracy and repeatability which made it as a standard for variety of industry applications. Our technology emphasized on reliability and accuracy of the product. By optimizing manufacturing process, our products can offer you excellent experience of measurements.


- Flow Range: 16kg/h to 2500t/h
- Connection: Flange/Thread
- Operating Pressure: Customized
- Process Temperature: up to +350°C
- Body Material: 304 Stainless Steel
- Measureing Tube Material: 316L Stainless Steel
- Ambient Temperature: -40 to 55°C
- Working Humidity: (5% to 95%) RH@+25°C
- Accuracy: ±0.1%
- Repeatability: ±0.05%
- Protection: IP 65 (IP 67 optional)
- Approvals: CE, Exd (ib)II Ct4
- Rs 485 Output
- Pulse Output: 0 to 10 kHz, ±0.001%F.S/°C
- Current Output: 4 to 20mA, ±0.005%F.S/°C
- Power Supply: 85 to 265VAC, 18 to 36VDC
- Density Measuring:
- Range:0.2 to 2.0 kg/l,
- Repeatability:0.001 kg/

Micro-bend type mass flowmeter is not mentioned in the product guide. Appendix 2 shows the comparison between micro-bend vs. regular type. Please contact us for further detail.
