Overview.

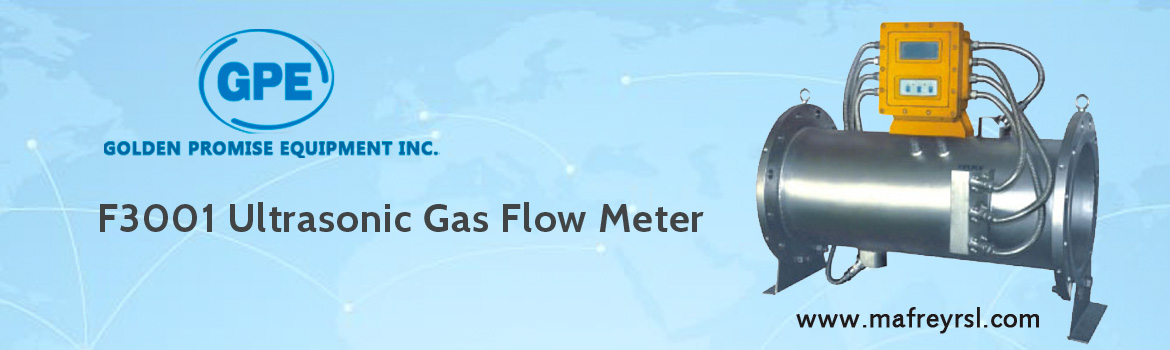

F3001 Ultrasonic Gas Flow Meter is based on the theory of acoustic transit time to calculate the average velocity of gas movement by measure time of the upstream and downstream, in which the ultrasonic waves generated by two bi-directional transducers travel along the path angled with respect to pipe axis.
Specifications:
- Accuracy : 0.5%, 1.0%, 1.5%
- Communication Protocol: Modbus protocol
- Output Signal : Pulse, 4 to 20mA current, RS485
- Working Temperature: -25 to +55
- Humidity: 5% to 95%RH(25 )
- Working Pressure: 230psi(16bar),360psi(25bar),580psi(40bar)
- Power Supply: DC 18 to 36V, AC 85 to 265V
- 50/60Hz
F3001 Ultrasonic Gas Flow Meter, DN=80mm, medium is gas, explosion-proof version, power supply is DC 18 to 36V, output port is RS485, Remote version, with temperature and pressure compensation, working pressure is 580psi(40bar), output signal is current (4 to 20)mA, accuracy is 0.5%.
