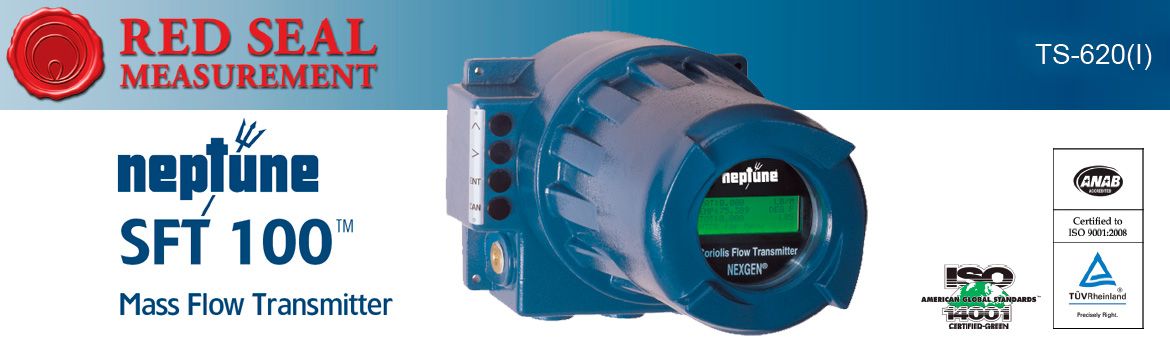

NexGen SFT100 Mass Flow Transmitter

Descripción.

The NexGen SFT 100 Mass Flow Transmitter interfaces with the entire family of Neptune mass flowmeter transducers. The SFT 100 is unmatched in terms of user-friendliness and its flexibility to interface with your control system. Measures mass flow rate and total mass, density, temperature, standard and actual volumetric flow rate and total volume, percent solids/concentration and solids mass flow rate and total. Uses expandable digital signal processing for increased accuracy and noise elimination.

Aplicaciones:

Liquids:

Wines, distilled and blended liquors, bottled and canned soft drinks, resins, propionic acid, fructose, solvents, rhodimet, calcium chloride, sugar, grape juice, ethyl acetate, molasses, edible beef tallow, tomato puree, animal fat, hydrogenated soybean oil, mineral spirits, water, waste oil, oil, latex, acetonitrile, cream, aquaeous ammonia, slurry, toluene, oleum, glycol-water, pulverized asphalt flakes, varnish, waste water, methanol, sodium hydroxide and milk whey.

Industries

> Oil and gas production
> Pharmaceutical
> Cosmetics
> Food and beverage
> Agricultural chemicals and pesticides
> Paint and coatings
> Perfume
> Adhesives

Application examples:

> Batching of multiple fluids through one meter
> Mobile transfer of abrasive paint slurry
> Stand alone explosion proof batching
> On the fly mixing
> Separating immiscible fluids by density cut
> Rapid transfer with two stage shut-off
> Propane and butane distribution terminal
> LPGas in distribution terminal
> Mobile distribution of multiple products
> Slurry control

NexGen SFT100 Features:

> Value added design allows the user to select only the necessary options
> Patented Digital Signal Processing (DSP) technology that increases measurement consistency
> Batching function and local keypad / display allow for safe, trouble free hazardous area batching
> Diagnostic self-check capability
> Digital communications: HART or Modbus
> Blind transmitter: Two analog/one pulse output and the RS485 option
> Accuracy, repeatability and reliability with 100:1 turndown
